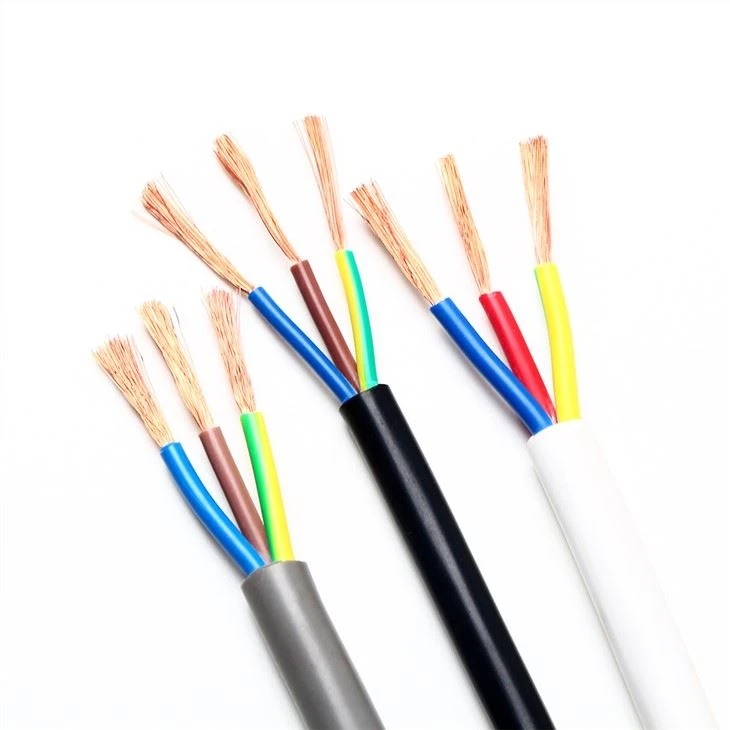

Pvc Insulated Sheathed Cable

2 core roj hmab cable tuaj yeem tiv taus huab cua, roj / roj, txhua yam thiab thermal stress.

Xa kev nug

Daim ntawv thovthiab nta

Rau kev tsim thiab kev thauj mus los ntawm PVC insulated sheathed cable, peb tuaj yeem sim peb qhov zoo tshaj plaws kom tau raws li lub sijhawm xa khoom raws li qhov yuav tsum tau ua ntawm txhua qhov kev yuav khoom. Lub rooj sib tham hnub kawg yog ib qho tseem ceeb tshaj plaws, vim tias kev ncua sij hawm ntawm kev xa xov cable yuav ua rau tag nrho cov phiaj xwm qeeb thiab raug nqi ntau dhau.

PVC insulated sheathed cable yog muab nyob rau hauv daim ntawv ntawm ntoo reels, corrugated thawv thiab coils. Lub cable kawg yog kaw nrog BOPP tus kheej nplaum daim kab xev thiab tsis yog hygroscopic sealing hau los tiv thaiv cable kawg los ntawm ya raws. Cov cim yuav tsum tau muab luam tawm rau sab nraud ntawm lub nruas nrog cov ntaub ntawv tiv thaiv huab cua raws li tus neeg siv khoom'

Peb yuav ua qhov zoo tshaj plaws los xa cov khoom zoo rau koj sai li sai tau.

Kev piav qhia

Khoom zoo: kab voj voog

Scope ntawm daim ntawv thov: non-flammable

Daim ntawv pov thawj: ISO9001, CE, UL, CCC, ROHS, VDE

Thauj pob: Ntoo

Specification: PVC tooj liab

Rated voltage U0 / u: 300 / 500v.450 / 750v;

Cov naj npawb ntawm cov cores: 1, 2, 3, 4, 5, 3 + 1

Nominal seem (mm2): 0.3 ~ 0.5, 0.75 ~ 6, 1.5 ~ 6, 1.5 ~ 400, 2, 3, 4, 5, 1 ~ 95, 1 ~ 150, 1 ~ 25, 1.5 ~ 150.

Qhov siab tshaj plaws ua haujlwm kub ntawm cable conductor: 60 º C

Daim ntawv thov

Khoom

Technical Data

Nominal ntoo khaub lig ntu ntawm tus neeg saib xyuas	Rwb thaiv tsev tuab	Sab hauv daim ntaub tuab	Hlau siv tuab	Sheath tuab	Kwv yees li. tag nrho txoj kab uas hla ntawm kab	Kwv yees qhov hnyav ntawm kab	DC tsis kam ntawm tus neeg xyuas pib 20ºC	Lub peev xwm nqa tam sim no
								Hauv huab cua
						Cu	A I	Cu	N	Cu
(mm2)	(mm)	(mm)	(mn)	(mm)	(mm)	(kg/km)	(kg/km)	(Ω/km)	(2/km)	(A)
2 5	4.5	1.6	2x0.5	2.9	5 3	3500	3035	≤0.727	≤1.20	140
35	4.5	1.6	2x0.5	2.9	55	3980	3329	≤0.524	≤0.868	170
50	4.5	1.8	2x0.5	3.1	5 8	4679	3748	≤50.387	≤0.641	200
7 0	4.5	1.8	2x0.5	3.1	61	5410	4107	≤0.268	≤0.443	250
95	4.5	2.0	2x0.5	3.4	66	6567	4799	≤0.193	50.320	300
120	4.5	2.0	2x0.3	3.4	7 0	7541	5308	≤0.153	≤0.253	350
150	4.5	2.0	2x0.5	3.6	73	8674	5883	≤0.124	≤0.206	390
185	4.5	2.2	2x0.5	3.6	7 7	9991	6549	≤0.0991	≤0.164	450
240	4.5	2.2	2x0.5	4.0	84	12887	8421	≤0.0754	≤0.125	525
300	4.5	2.2	2x0.8	4.0	8 9	14974	9392	≤0.0601	≤0.100	595
400	4.5	2.2	2x0.8	4.0	103	19934	12346	≤0.0470	≤0.0778	698
500	4.5	2.3	2x0.8	4.2	110	23642	14174	≤0.0366	≤0.0605	801

Peb Daim Ntawv Pov Thawj

Peb Rhiav

Exhibition

FAQ

1.Koj puas yog lub Hoobkas?

Yog, peb yog cov chaw tsim khoom.

2.Kuv tuaj yeem tau txais cov qauv ntawm koj lub tuam txhab li cas? Puas yog tus qauv dawb?

Yog tias koj xav tau cov qauv los kuaj xyuas qhov zoo, thov hu rau peb.

3.Koj qhov kev txiav txim yam tsawg kawg nkaus yog dab tsi?

Peb lub tuam txhab muaj qhov kev txiav txim yam tsawg kawg nkaus, tab sis peb kuj lees txais cov khoom me me.

4.Koj piv tus nqi nrog lwm tus li cas?

Peb tus nqi yog xam raws li qhov xav tau ntawm cov neeg siv khoom! Tus nqi ntawm cov khoom sib txawv nrog cov kev xav tau sib txawv.

5.Lub ntim ntawm cov khoom yog dab tsi?

Lub ntim feem ntau yog ntoo chim, steel chim, steel ntoo chim los yog raws li tus neeg yuav tsum tau muaj.
