Flexible Flat Sheath Cable
Flexible flat sheet cable feem ntau yog siv rau cov ntawv siv tas nrog cov ntsuas hluav taws xob ntawm 600 / 1000V thiab hauv qab, xws li of elevator, submersible twj, thiab lwm yam.
Daim ntawv thovthiab nta
Peb yuav pom zoo cov cables tsim nyog raws li cov neeg siv khoom xav tau thiab tsim cov ntim tsim nyog kom muaj kev nyab xeeb thiab kev lag luam xa khoom. Muab kev teeb tsa thiab siv kev taw qhia thaum lub sijhawm, thiab xyuas kom cov khoom zoo raws li kev siv ib txwm muaj.
Flexible flat sheet cable feem ntau yog siv rau cov ntawv siv tas nrog cov ntsuas hluav taws xob ntawm 600 / 1000V thiab hauv qab, xws li of elevator, submersible twj, thiab lwm yam.
Raws li kev ntim khoom, peb lub tuam txhab thawj zaug txais cov khoom ntim polyethylene zaj duab xis, uas feem ntau yog tsim rau cov cables nrog ib txoj kab uas hla ntawm 10mm thiab qis dua, 100M / yob (raws li cov neeg siv khoom xav tau); Qhov thib ob yog steel ntoo chim ntim, uas feem ntau yog siv rau cables nrog ib txoj kab uas hla ntawm 10mm thiab saum toj no. Lub thoob loj yog 180cm * 180cm * 110cm (ntiv tes sib txawv tuaj yeem muab tau raws li qhov ntim ntev).
Kev piav qhia
Khoom npe: Flexible Flat Sheath Cable
Cov khoom siv tseem ceeb: liab qab tooj liab hlau
Daim ntawv pov thawj: International Organization for standardization, CCC
Core No.: 1, 2, 3, 4, 5, 3 + 1, 4 + 1, 3 + 2
Txuj: GB / T 12706-2008, IEC 60502-2005
Sheath xim: dub los yog raws li xav tau
Screen: tooj liab strip, tooj liab hlau
Cov khoom siv armor: galvanized steel hlau, steel sawb thiab tooj liab sawb
Nrov ntau thiab tsawg: 50mm, 95mm, 120mm, 150mm
Lub cev muaj zog: 0.6 / 1kv, 8.7 / 15kv, 12 / 20kV, 21-35kv, 36kV
OEM: Yog
Kev lag luam hom: Hoobkas
Thauj pob: steel ntoo nruas lossis raws li xav tau
Specification: 0.5-800mm2
Keeb kwm: Zhejiang, Suav teb

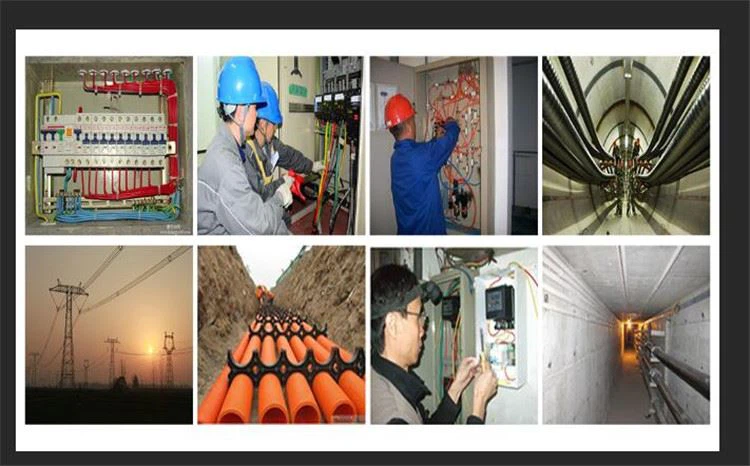

Daim ntawv thov

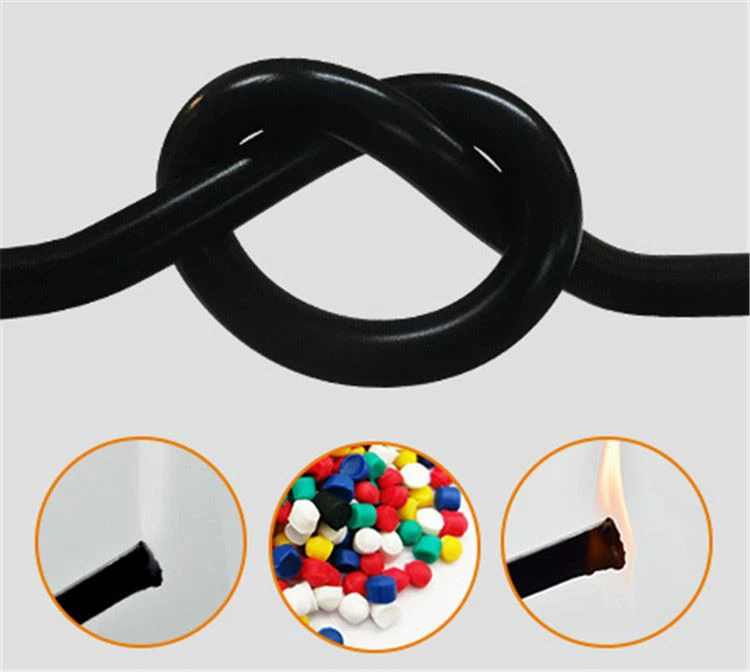

Khoom
Technical Data
Thaj chaw (mm2) | Insulaiton tso. (mm) | Sheath tsho. (mm) | Zuag qhia tag nrho dia. (mm) | Kwv yees li. hnyav (kg/km) | Max. DC tiv. @ 20ºC (Ω/km) |
1.5 | 0.7 | 1.0 | 14.0 x 5.0 | 135 | 12.1 |
2.5 | 0.8 | 1.0 | 17.5 x 5.8 | 194 | 7.41 |
4 | 0.8 | 1.2 | 19.1 x 6.7 | 265 | 4.61 |
6 | 0.8 | 1.2 | 22.0 x 7.6 | 355 | 3.08 |
10 | 1.0 | 1.4 | 26.2 x 9.3 | 558 | 1.83 |
16 | 1.0 | 1.5 | 29.9 x 10.7 | 775 | 1.15 |
25 | 1.2 | 1.6 | 36.2 x 13.0 | 1160 | 0.727 |
35 | 1.2 | 1.7 | 40.6 x 14.2 | 1563 | 0.524 |
50 | 1.4 | 1.8 | 47.2 x 16.5 | 2115 | 0.387 |
70 | 1.4 | 1.9 | 53.0 x 18.5 | 2830 | 0.268 |
95 | 1.6 | 2.0 | 59.3 x 20.8 | 3680 | 0.193 |
120 | 1.6 | 2.1 | 64.9 x 23.5 | 4569 | 0.153 |
150 | 1.8 | 2.2 | 72.8 x 26.1 | 5672 | 0.124 |
185 | 2.0 | 2.3 | 77.5 x 27.5 | 6748 | 0.0991 |
Peb Daim Ntawv Pov Thawj
Peb Rhiav
Exhibition
FAQ
Q1.Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas nrog ntau tshaj 10 xyoo kev tsim khoom.
Q2.Kuv tuaj yeem tau txais cov qauv ntawm koj lub tuam txhab li cas? Puas yog tus qauv dawb?
A: Yog tias koj xav tau cov qauv los kuaj xyuas qhov zoo, thov hu rau peb. Peb yuav xa koj cov qauv dawb, tab sis cov khoom thauj yuav tsum tau them.
Q3.Dab tsi ntawm ib puag ncig koj tuaj yeem siv rau hauv?
A: Peb cov cables tuaj yeem siv rau hauv qhov chaw hnyav heev. Koj tuaj yeem qhia peb koj qhov kev xav tau.
Q4.Koj ua li cas piv tus nqi nrog lwm tus?
A: Peb tus nqi raug xam raws li cov neeg siv khoom xav tau! Tus nqi ntawm cov khoom sib txawv nrog cov kev xav tau sib txawv.
Q5.Koj puas muaj kab no?
A: Yog, peb yog cov chaw tsim khoom tshwj xeeb ntawm cov xov hlau thiab cables. Peb kuj tuaj yeem kho raws li koj xav tau.
