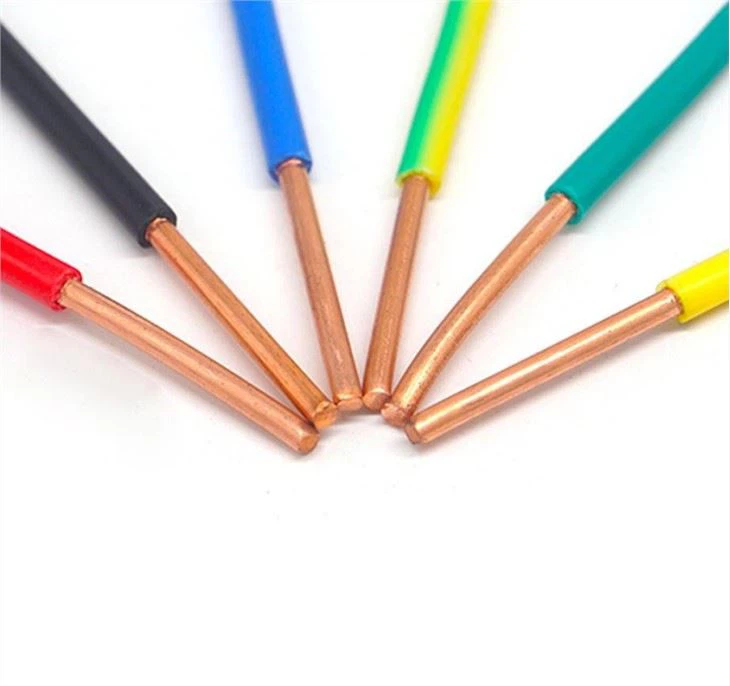

12 Gauge Ib leeg Strand Hlau

Muaj ntau ntau hom 12 gauge tib txoj hlua hlau, suav nrog bv cable, RV cable, BVV cable, thiab lwm yam.

Xa kev nug

Qhov zoo ntawm cov hlau

1.Muaj ntau hom 12 gauge ib leeg strand hlau, nrog rau bv cable, RV cable, BVV cable, thiab lwm yam.

2.This 12 gauge ib leeg strand xaim yog tsim rau kev teeb tsa hluav taws xob, txuas txuas ruaj khov lossis hloov tau yooj yim rau cov khoom siv hluav taws xob nrog cov ntsuas hluav taws xob ntawm 450/750V thiab hauv qab no.

3. Lub 12 gauge ib leeg strand hlau yog ua los ntawm PVC rwb thaiv tsev khoom, uas yog feem ntau haum rau cov khoom siv hauv chaw ua haujlwm, khoom siv hauv tsev, chav ua noj, teeb, khoom siv kho mob thiab txhua yam khoom siv hluav taws xob / hluav taws xob.

4.Yog tias koj lub tuam txhab yuav tsum kho raws li qhov yuav tsum tau ua, peb yuav ua tau raws li koj xav tau. Peb lub tuam txhab tau dhau cov ntawv pov thawj kev ua haujlwm zoo, CE, CE, VDE, IMQ, thov so assured mus yuav.

5. Lub tuam txhab tau tsim 12 gauge ib leeg strand hlau tau ntau xyoo.

6. Lub tuam txhab them nyiaj rau credit, ua raws li daim ntawv cog lus, ua kom cov khoom zoo, thiab tau txais kev ntseeg siab ntawm peb cov neeg siv khoom nrog lub hauv paus ntsiab lus ntawm ntau yam kev tswj hwm tus yam ntxwv thiab cov txiaj ntsig me me thiab kev hloov pauv sai. Zoo siab txais tos cov qhua tuaj noj mov tshiab thiab qub hauv tsev thiab txawv teb chaws los nug thiab sib tham. Kev muag khoom loj hlob rau 10 xyoo sib law liag.

Kev piav qhia

Khoom

Technical Data

Qhov hluav taws xob theem (V)	Nominal seem (mm²)	Number ntawm conductors	Toplimit ntawm qhov dav dav (mm)	Qhov siab tshaj DC tsis kam (20ºC) (Ω/km)	Miniium rwb thaiv tsev tsis kam (20ºC) (MΩ·km)	Pom zoo tus nqi nqa muaj peev xwm (A)	Siv hnyav (kg/km)
300/500	0.5	1	2.3	36	0.015	13	8.3
	0.75	7	2.6	24.5	0.012	17	10.9
	0.75	1	2.7	24.5	0.014	17	11.8
	1	7	2.8	18.1	0.011	20	13.7
	1	1	3	18.1	0.013	20	14.8
450/750	1.5	1	3.2	12.1	0.011	25	20.0
	1.5	7	3.3	12.1	0.01	25	21.3
	2.5	1	3.9	7.41	0.01	34	31.5
	2.5	7	4	7.41	0.009	34	34.4
	4	1	4.4	4.61	0.0085	44	46.8
	4	7	4.6	4.61	0.0077	44	48.1
	6	1	5	3.08	0.007	58	65.1
	6	7	5.2	3.08	0.0065	58	68.8
	10	7	6.7	1.83	0.0065	79	111
	16	7	7.8	1.15	0.005	111	166
	25	7	9.7	0.727	0.005	146	263
	35	7	10.9	0.524	0.004	180	356
	50	19	12.8	0.387	0.0045	228	487
	70	19	14.6	0.268	0.0035	281	679
	95	19	17.1	0.193	0.0035	344	932
	120	37	18.8	0.153	0.0032	397	1163
	150	37	20.9	0.124	0.0032	456	1424
	185	37	23.3	0.0991	0.0032	519	1789
	240	61	26.6	0.0754	0.0032	592	2335
	300	61	29.6	0.0601	0.003	685	2924
	400	61	33.2	0.047	0.0028	799	3750

Peb Daim Ntawv Pov Thawj

Peb Rhiav

Exhibition

FAQ

Q1.Kuv tsis tau' tsis pom lub cable kuv xav tau ntawm nplooj ntawv no?

A: Yog tias koj tsis ua' nrhiav tsis tau hom cable koj xav tau, thov hu rau peb ncaj qha thiab peb yuav teb rau koj sai li sai tau.

Q2.Cov khoom twg peb lub tuam txhab tsim?

A: Peb tshwj xeeb hauv kev muab cov tub ntxhais tooj liab cable, aluminium core cable, fais fab cable, BV tooj liab yas xaim, BVR tooj liab hloov tau hlau, BVV sheathed hlau, RVV fais fab hlau, yas tooj liab hlau, PVC cable, RVs cable, armored cable, DC cable, photovoltaic cable thiab lwm yam khoom.

Q3.Dab tsi yog koj qhov Kev txiav txim yam tsawg kawg nkaus?

A: Feem ntau 305m.

Q4.Kuv puas tuaj yeem tau txais luv nqi?

A: Nws nyob ntawm koj qhov ntau, Peb tuaj yeem ua tus luv nqi thiab them tus nqi thauj khoom. Pls ua siab zoo tiv tauj peb.

Q5.Yuav ua li cas yog tias lub cable peb xav tau txawv ntawm koj cov specifications?

A: Peb tuaj yeem ua raws li koj qhov kev thov, suav nrog cable, xim, khoom tsim thiab kev tsim, kev ua haujlwm, thiab lwm yam.

Cim npe nrov: 12 gauge ib strand hlau, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, lag luam wholesale, pheej yig
