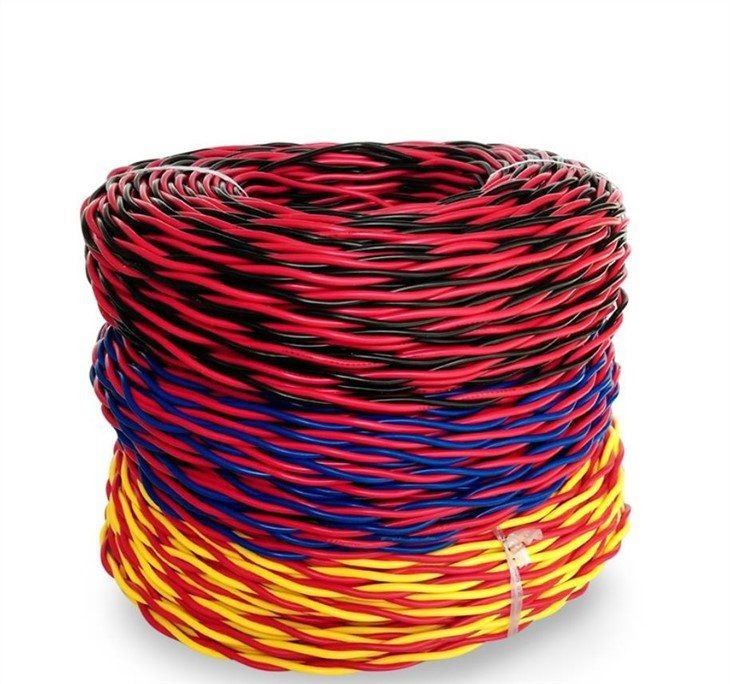

1.5mm Tib Core Multi Strand Cable

Daim ntawv thov: Kev tsim kho, hauv av, kev lag luam, chaw nres tsheb fais fab, kev sib txuas lus, khoos phis tawj
Voltage: Tsawg thiab Nruab Nrab Voltage Cable
Tam sim no: DC & AC
Cov khoom siv rwb thaiv tsev: PVC
Khoom siv: PVC
Khoom siv: Round Hlau

Xa kev nug

Kev piav qhia

Qauv	HZ-010B	Hom	OEM
Khoom npe	1.5mm ib leeg tub ntxhais multi strand cable	Hom	Rwb thaiv tsev
Daim ntawv thov	Hauv av	Qhov Chaw Keeb Kwm	Zhejiang, Suav teb
Cov khoom siv coj ua	Tooj liab	Rated Voltage	300/500V 450/750V
Cov khoom siv rwb thaiv tsev	PVC	Pob	Thawv
Xim	Xiav, Xim av, Daj, Ntsuab, lossis raws li koj lub ntsiab lus	Muaj ntawv pov thawj	VDE, CCC, CE

Daim ntawv thovthiab nta

Cov kab hluav taws xob yog dab tsi?

Thaum nws los txog rau cable, muaj ntau yam xaiv los ntawm. Yog tias nws muaj cov yam ntxwv sib txawv thiab kev siv tseem ceeb raws li nws cov tsos, nws tuaj yeem muab faib ua plaub yam khoom, uas yog, ib qho khoom siv hlau, ib leeg tub ntxhais ntau txoj hlua cable, PVC hloov tau cable, thiab PVC sheathed cable.

Kuj tseem muaj ntau hom kev zoning raws li qhov chaw hla ntu ntawm ib qho core multi strand cable. Muaj tsib qhov kev qhia tshwj xeeb hauv tsev, uas yog 1, 1.5, 2.5, 4 thiab 6 square metres. Qhov nruab nrab me ntsis specifications yog 10 square meters, 16 square meters thiab 25 square meters. Yog hais tias nws yog siv nyob rau hauv kev lag luam, cov specifications thiab qauv yog loj heev, ncav cuag 120, 150, 185, thiab chav tsev yog cubic millimeter. Raws li qhov loj ntawm cheeb tsam hla ntu, cov qis dua 10 cubic millimeters yog lub hauv paus hu ua cov xov hlau, tab sis cov saum toj no 10 cubic millimeters hu ua cables.

Khoom

Technical Data

Voltage theem (V)	Nominal seem (mm²)	Tus naj npawb ntawm cov conductors	Toplimit ntawm tag nrho txoj kab uas hla (mm)	Qhov siab tshaj DC tsis kam (20 degree) (Ω/km)	Miniium rwb thaiv tsev tsis kam (20 degree) (MΩ·km)	Pom zoo tus nqi nqa muaj peev xwm (A)	Siv hnyav (kg/km)
300/500	0.5	1	2.3	36	0.015	13	8.3
	0.75	7	2.6	24.5	0.012	17	10.9
	0.75	1	2.7	24.5	0.014	17	11.8
	1	7	2.8	18.1	0.011	20	13.7
	1	1	3	18.1	0.013	20	14.8
450/750	1.5	1	3.2	12.1	0.011	25	20.0
	1.5	7	3.3	12.1	0.01	25	21.3
	2.5	1	3.9	7.41	0.01	34	31.5
	2.5	7	4	7.41	0.009	34	34.4
	4	1	4.4	4.61	0.0085	44	46.8
	4	7	4.6	4.61	0.0077	44	48.1
	6	1	5	3.08	0.007	58	65.1
	6	7	5.2	3.08	0.0065	58	68.8
	10	7	6.7	1.83	0.0065	79	111
	16	7	7.8	1.15	0.005	111	166
	25	7	9.7	0.727	0.005	146	263
	35	7	10.9	0.524	0.004	180	356
	50	19	12.8	0.387	0.0045	228	487
	70	19	14.6	0.268	0.0035	281	679
	95	19	17.1	0.193	0.0035	344	932
	120	37	18.8	0.153	0.0032	397	1163
	150	37	20.9	0.124	0.0032	456	1424
	185	37	23.3	0.0991	0.0032	519	1789
	240	61	26.6	0.0754	0.0032	592	2335
	300	61	29.6	0.0601	0.003	685	2924
	400	61	33.2	0.047	0.0028	799	3750

Peb lub tuam txhab

Ntim

FAQ

1. Thaum twg kuv tuaj yeem tau txais tus nqi?

Cov lus hais yuav raug xa tuaj rau koj hauv 6 teev tom qab tau txais koj qhov kev nug. Yog tias koj muaj qee yam ceev, thov hu rau peb lossis xa email ncaj qha.

2. Kuv tuaj yeem tau txais cov qauv los kuaj xyuas koj li cas?

Tom qab peb paub meej tus nqi, peb yuav xa koj cov qauv dawb.

3. Lub sij hawm ua cov khoom loj yog dab tsi?

Feem ntau hais lus, thawj qhov kev txiav txim yuav siv sijhawm 35 hnub, thiab qhov kev txiav txim rov qab yuav siv sijhawm 25 hnub.

4. Koj lub tuam txhab puas txais OEM ntau lawm?

Yog, koj tuaj yeem luam koj lub npe hom.

5. Puas yog nws yooj yim mus ntsib koj lub Hoobkas?

Nws yog 2 teev tsav los ntawm tshav dav hlau Shanghai lossis Hangzhou tshav dav hlau. Peb mam li tuaj tos koj.

Cim npe nrov: 1.5mm ib core multi strand cable, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, lag luam wholesale, pheej yig
