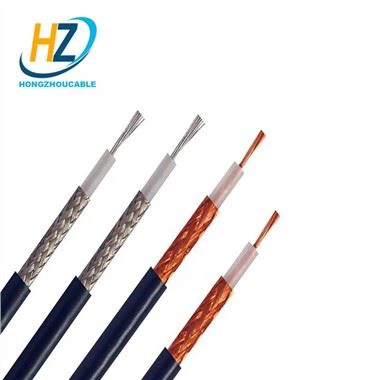

Sab nraum zoov Coaxial RG6 Cable
Peb siv cov ntaub ntawv txhim khu kev qha los tsim RG6 CCS coaxial cable.Kev tsim cov kab hluav taws xob zoo pib nrog kev siv cov khoom zoo thiab cov khoom siv.
Kev piav qhia
Qauv | HZ-04E | Hom | OEM |
khoom | Sab nraum zoov coaxial RG6 cable | Hom | RG6 |
Daim ntawv thov | Kev sib txuas lus cable | Inner Conductor | BC/CCS/CCA/TC/CU/CCAG |
Hlau Core Khoom | Tooj liab hlau | Qhov Chaw Keeb Kwm | Zhejiang, Suav teb (Mainland) |
Jacket | PVC | Thauj Pob | Carton, Ntoo Nruas |
Xim | Dub los yog dawb | Muaj ntawv pov thawj | CE, VDE, ROHS, SGS |
Daim ntawv thov thiab nta
Sab hauv tus neeg xyuas pib ntawm sab nraum zoov coaxial RG6 cable yog zoo tooj liab-clad steel (CCS). Lub dielectric core yog rwb thaiv tsev qib ntshiab polyethylene. Adhesive laminated aluminium daim kab xev, 60 feem pua braided, PE sheath.
Sab nraum zoov coaxial RG6 cable yog siv los ua cov khoom xa tawm ntawm sab nraum zoov CATV thiab CCTV system thiab txuas cable ntawm satellite system (public TV kav hlau txais xov; video saib xyuas Circuit Court; wireless kev sib txuas lus; kev sib txuas lus thiab teeb liab tswj qhov system)
Khoom
Technical Data
Kev tshuaj xyuas hluav taws xob | |
Inner conductor DC kuj | 125Ω/km |
Outer conductor DC kuj | 78Ω/km |
Impedance | 75±3Ω |
Capacitance | 53.1 pF / m |
Teeb liab kis ceev | 88% * C. |
SRL | 5-300MHz Ntau dua lossis sib npaug rau 20dB, 300-3000MHz Ntau dua lossis sib npaug rau 8dB |
Min. Lub luj tshib Radius | 8mm x kab |
Peb lub tuam txhab
Ntim
FQA
1. Koj puas yog cov chaw tsim khoom lossis lub tuam txhab lag luam?
Peb yog cov kws tshaj lij cable chaw tsim khoom nrog ntau xyoo ntawm kev tsim khoom.
2. Peb cov nqe lus them nqi yog dab tsi?
Peb cov nqe lus them nqi feem ntau yog T / T 30 feem pua ua ntej them nyiaj, piv txwv li qhov nyiaj tshuav ua ntej xa khoom lossis L / C thaum pom.
3. Lub sijhawm khoom xa tuaj yog dab tsi?
Lub sijhawm xa khoom feem ntau yog li ntawm 20-30 hnub. Yog tias qhov kev txiav txim kom muaj nuj nqis loj, lub sijhawm xa khoom yuav tsum tau rov sib tham dua.
4. Peb puas tuaj yeem muab cov neeg siv khoom kuaj dawb?
Tau kawg, peb muab cov qauv dawb rau cov neeg siv khoom saib.
5. Puas yog koj tus nqi suav nrog cov kev lis kev cai tshem tawm, ntshuam se thiab kev pabcuam kev teeb tsa?
Thov txim, peb tsuas yog muab kev pabcuam cable thiab tsheb thauj mus los hauv Suav teb. Ob tog yuav tsum rov hais dua thiab sib tham txog lwm yam kev pabcuam.
Cim npe nrov: sab nraum zoov coaxial rg6 cable, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, lag luam wholesale, pheej yig
